Introduction

Lab Objective

In this Lab, we will go through the tasks that are required to complete the general pre-configuration of Question and Answer bot in Webex Connect.

Pre-requisites

  • You have received the access credentials with a full admin access

Control Hub: https://admin.webex.com
Portal: https://portal.wxcc-us1.cisco.com/portal
Agent Desktop: https://desktop.wxcc-us1.cisco.com
Connect: https://cl2podX.imiconnect.io/ (where X is your POD number)

Lab Section

Step 1. Navigate to Bot builder and create Bot

  • Login to your respective Webex Connect UI using the provided URL https://cl2podX.imiconnect.io/ (where X is your POD number).

  • Navigate to App Tray and Bot Builder

  • Select QnA bots and click ‘New Q&A Bot’

  • Input a name for this bot in the Bot Name section and enable Allow Agent Handover. Click Done

Step 2. Create Article, Custom Synonyms, select NLU engine and Make bot live

  • Articles form the crux of Q&A Bots. An article is the combination of a question, its variations & response to this question.

  • All the articles configured in a bot together constitute the Bot’s knowledge base or corpus. Every user’s query is compared to this knowledge base and the answer that returns the highest confidence level is returned to the user as the response of the bot.

  • Navigate to Articles and click Create new article

  • Input the default utterance for this article in the Default utterance section

  • Fill in the default question and variants for this question on the left

  • Add the response that should be displayed for these questions on the right

  • Assign this category to an existing or new category by selecting a category on the top left. This step can be skipped here and performed when saving the article.

  • Click Save on the top right or Save and train if you want to train your existing model with the current corpus.

  • Select Add to new category option and input a category name. Click Change and Save

  • This knowledge base should show as Trained with the new article added along with the utterances

Note: There are also other ways to work with articles. Import from csv or from a FAQ link. These options will be covered in the later stage of the lab.

  • A lot of bot use cases tend to involve words and phrases that may not be a part of the standard English vocabulary or are specific to a business context.

  • A bot builder is forced to enter these terms and their variations as a part of the training utterances in all the articles that reference them. To overcome this redundant data entry, we have introduced the ability to configure such values and their synonyms in a new Custom synonyms tab beside the existing “Articles” within a Q&A bot. Any of the synonyms of each root word gets replaced with the root word at runtime by the platform automatically.

  • Navigate to Custom synonyms tab in the articles section and click on + New root word

  • Configure the root word value and its synonyms and click Save

Note: You also have the option to import from and export to a .CSV file.

  • Q&A and Task bots use NLU (Natural Language Understanding), which in turn uses the power of machine learning to determine the intent of consumer statements. Swiftmatch, RASA, and Mindmeld are three NLU engines used to assess the intent from the consumer inputs and respond with an accurate response.

  • Swiftmatch is a fast, lightweight training engine that supports multiple languages, whereas RASA is a leading open-source conversational AI framework. Mindmeld (Beta) is an advanced conversational AI framework that produces quality conversational flows and offers various NLU capabilities.

  • Click NLU Engine on the right side of the page. The Change training engine window appears. Select Mindmeld and click Update

  • Verify that the NLU update has taken effect

  • Once all the desired articles are created, users should train their bot

  • Make it Live

  • Verify the bot is Live

Step 3. Preview Bot

  • Bot builder platform provides users with an easy way to preview their bots while developing it and even after development is done. This provides developers with an easy way to test the functioning of their bots and determine if the desirable responses are generated corresponding to respective input queries.

  • Click on preview on top right and test the bot. Bot builder platform provides users with an easy way to preview their bots while developing it and even after development is done. This provides developers with an easy way to test the functioning of their bots and determine if the desirable responses are generated corresponding to respective input queries.

  • One can provide utterance (or sequence of utterances) for which the bot’s response needs to be checked. This functionality enables the developer to ensure that the bot is responding as expected.

  • The shareable preview widget enables bot developers to share their bot with stakeholders and consumers in a presentable manner without the need of developing a custom UI to surface the bot.

  • Click the three dots next to the Preview option on the top right and Copy Preview Link

  • Open the link in a new browser tab. By default, the copied preview link renders the bot with phone casing. Developers can do some quick customization by changing certain parameters in the preview link.

  • brandColor and phoneCasing parameters in the link can be customized.

Step 4. Bot testing

  • As the scope of a bot increases over time, sometimes the changes we make to improve one or more areas of the bot’s logic and NLU may negatively impact other areas in the same bot. Bot Builder platform provides a built-in one-click bot testing framework that is extremely helpful in testing a large set of test cases easily and quickly.

  • Click on Testing and add test case. The test cases can be configured by entering a message and an Expected Template in the respective columns as shown below

  • Each row in the above table is an individual test case

  • Tests defined on the Test cases tab can be executed from the Execution tab. Click the Execute tests button and Continue

  • All the test cases defined on the previous tab will be run sequentially and the result of each test case run is shown next to the test case

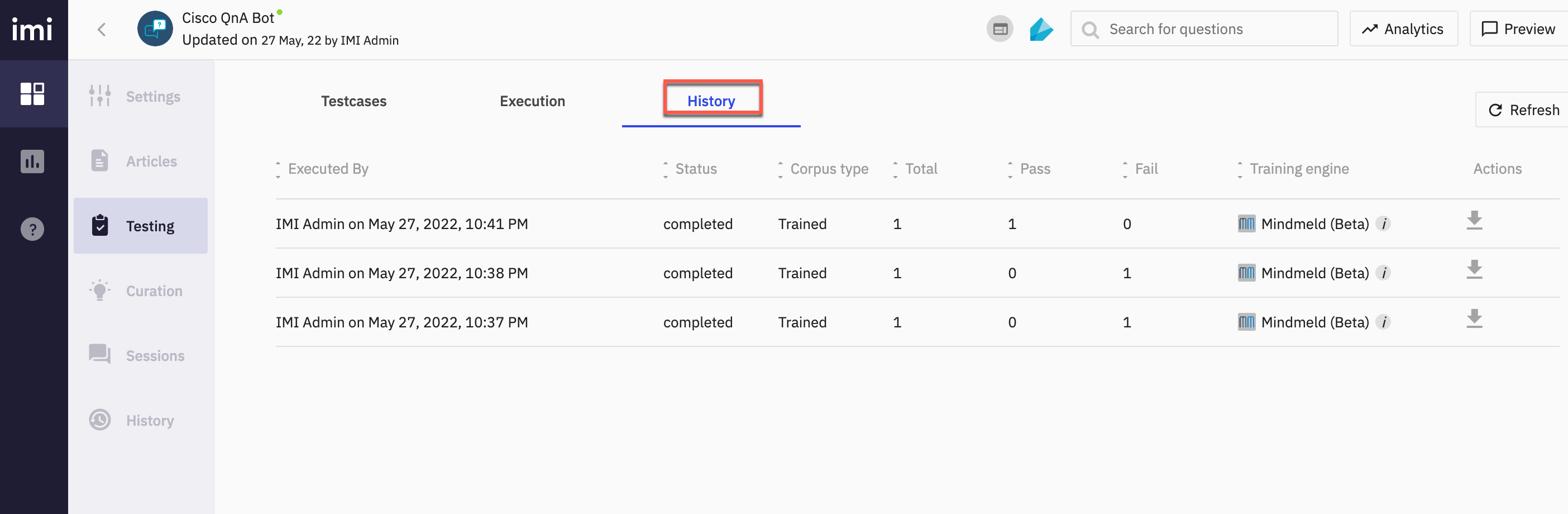

  • All test case executions are available to be viewed on-demand in the “History” tab.

Back to top

Congratulations, you have completed this section!
